PUMA SERIES
SUPERIOR PERFORMANCE AND RELIABILITY
Datasheets
Product Inquiry
SHINGLED TECHNOLOGY
Over 555Wp & Over 660Wp
Shingled technology eliminates traditional ribbon connection with shingles connected in series. By removing the soldered ribbons, the active area of the module is improved and thermal stresses are reduced – resulting in exceptional efficiency and reliability over standard interconnections. Puma modules are based on the shingled technology which allow a higher cells density than standard half-cut modules.

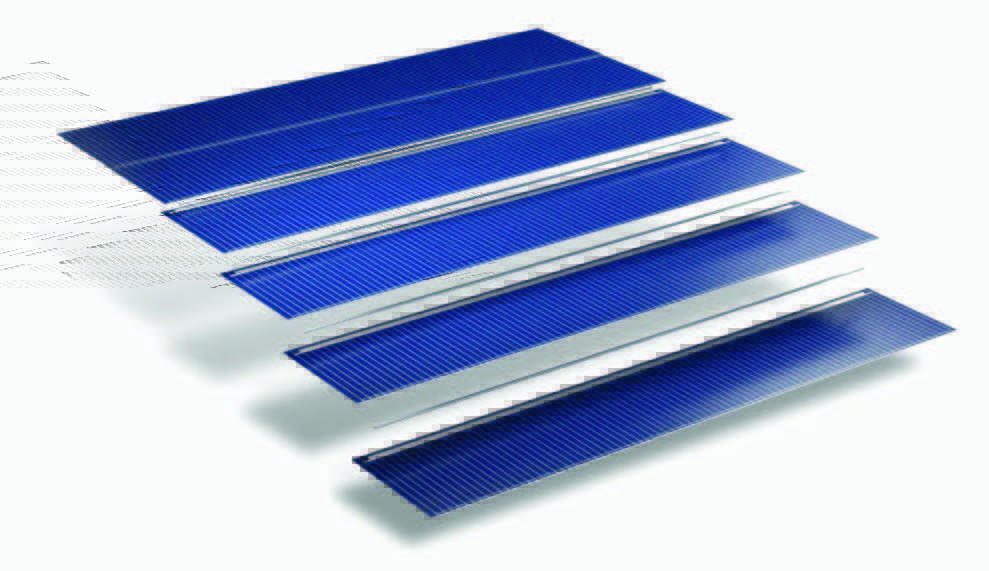

Cells are cut in 5 or 6 pieces, the obtained “shingles” are assembled in strings by connecting front and rear edges of consecutive shingles with an Electrical Conductive Adhesive (ECA).
The ECA replaces the Copper Interconnection Ribbons usually soldered on solar cells, providing a flexible interconnection and avoiding the thermal/mechanical stresses on the Silicon – Copper interface.
small size for roof top installation

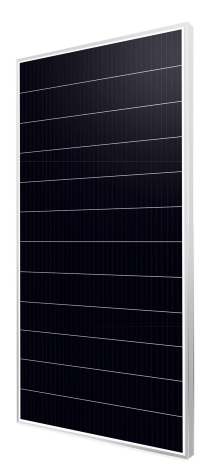

The PUMA module with power class over 555Wp, efficiency up to 21,6% and 25 years product & output warranty is:
- Best “Value for money” choice
- Ideal for rooftop installations (in the
same size of the rooftop,
more power can be installed
compared to standard modules) - Low LCOE
for commercial & utility installation

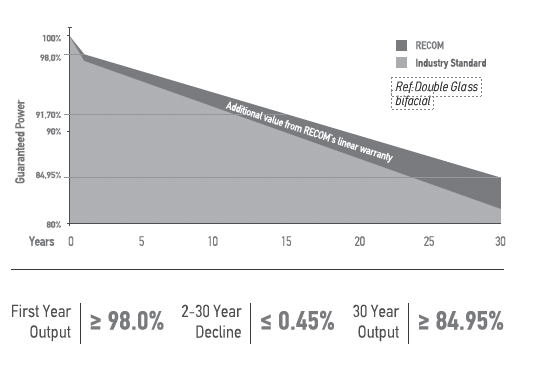

The PUMA module with power class over 670Wp, efficiency up to 21,6% and 25 years product & output warranty.
Datasheets
Certificates
